Consider objects in binary or gray scale images. The the most important characteristic of an object is its area, which is simply the number of pixels inside. It's also the first measurement of importance of the object.

This article is about measuring areas of objects in digital images. If you are interested in the concept of area of "curved" objects, see Area integral.

Contents

Area of an object vs. area inside a cycle

Is the area 10 or 11?
Enlarge
Is the area 10 or 11?
The area is marked with red.
Enlarge
The area is marked with red.

The area includes the holes - in the sense that the area of the holes is not subtracted.

This way a thin curve that encloses a region is as large (and as important) as the region itself. Note: one argument against this approach is that the area isn't stable under noise. For example, one extra pixel could complete a thin circle and dramatically increase the area of this object. My answer is that such an event is dramatic, just as dramatic as when two objects are united by a single extra pixel. For more see Robustness of geometry.




Digital area vs. analog area

Whatever the "real" (or physical) object is, its area computed this way will be as close as we like to its "true" area as the resolution increases (not the case with lengths of curves). This statement can be justified by appealing to Lebesgue integral [1]. See also the pictures below.













Definition

Enlarge
Area or size of an object
   = the number of pixels inside its outer boundary

For example, object #11 has ...










Areas of objects in gray scale images

The object as a max of the gray scale function.
Enlarge
The object as a max of the gray scale function.
The area of the object.
Enlarge
The area of the object.

Suppose the surface on the left is the gray scale function of the image. Then the tip cut with a horizontal plane corresponds to an object. Finally, the flat area marked in red is the size of the object.















Filtering objects based on their areas

The images below show how the number of objects declines as the size threshold increases: 0, 100, 300, 500, 1000.


Below a segmentation is found with limitations on size only. A lot of noise is still counted as objects - at this or other settings for the size. Use size in conjunction with contrast, roundness and saliency for better results.

The original
Enlarge
The original
Pixcavator: size = 250, contrast = 0
Enlarge
Pixcavator: size = 250, contrast = 0


For other measurements see Measuring objects.

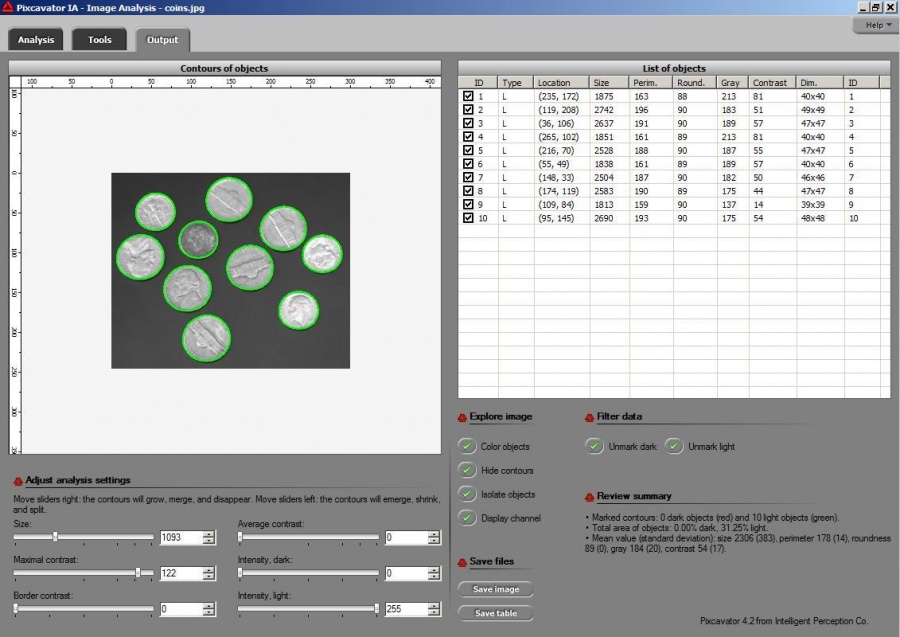

The area is the main tool for measuring the importance of objects in Pixcavator. It is used to filter objects in the image (first slider) and it is also shown in Pixcavator's output table under "Area". Some examples:


For more see Image analysis examples.


To experiment with the concepts, download the free Pixcavator Student Edition.
