ImageJ
From Computer Vision Primer
Here we have a comparative analysis of ImageJ and Pixcavator 2.4.
|
Tasks and features |
ImageJ |
Pixcavator |
|
Analysis of the gray scale image after binarization |
Yes |
Yes |
|
Computation of binary characteristics of objects/particles |
Yes (A specific binarization has to be found first by thresholding or another method.) |
(The characteristics are computed for all possible thresholds.) |
|
size/area |
Yes |
|
|
circularity/roundness |
Yes |
|
|
centroid |
Yes |
Yes |
|
perimeter |
Yes |
Yes |
|
bounding rectangle |
Yes |
No (Useless for such applications as microscopy where the results should be independent of orientation) |
|
|
|
|
|
Analysis of the gray scale image without prior binarization |
Limited |
|
|
Detection of objects as max/min of the gray scale |
Yes |
|
|
Filtering detected objects (in order to deal with noise etc) |
Yes (with respect to contrast only) |
Yes (with respect area, contrast, roundness, and saliency) |
|
Counting objects/particles |
Yes |
|
|
Image segmentation method |
Watershed - for either max or min but not both (dark or light objects but not both) |
Topology (both dark and light objects) |
|
Computation of gray scale characteristics of objects |
No |
|
|
contrast |
No |
|
|
center of mass |
No |
Yes |
|
saliency/mass |
No |
|
|
average contrast |
No |
Yes |
|
|
|
|
|
Automatic analysis |
Yes |
Yes |
|
Semi-automatic mode |
No |
Yes (based on objects found for all possible thresholds) |
|
Manual mode |
No |
Yes (full control over found objects) |
|
User interface |
Hundreds of commands in drop down menus |
4 sliders, 7 buttons |
|
User experience (mine) |
“Wrong image format!” “Threshold first!” “Results unsatisfactory? Start over!” |
|
|

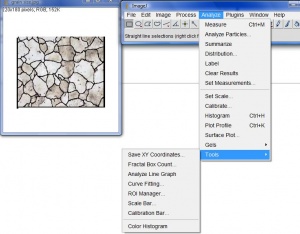

Screenshots |
|
| Platforms |
Windows, Mac, Linux |
Windows only (cellAnalyst web application is available) |
| Price |
Free |
$150 (free trial) |
